Description

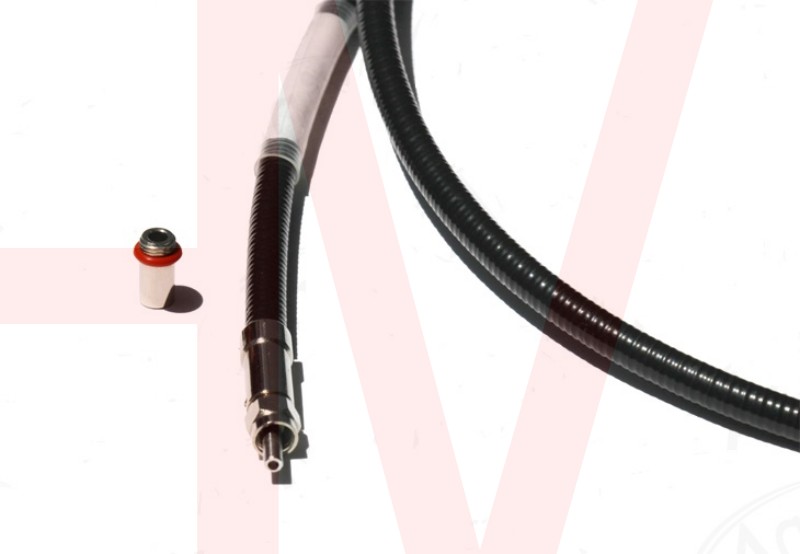

HP-SMA905 connectors with Free-Standing Fiber Tip (air gap), terminal polished energy fibers in metal ferrule can hold an average laser power up to 100W,can be used for a pigtail of laser diode/laser diode module.

Features:

well point performance;

Epoxy free holding fiber tip;

Stainless steel momocoil protection;

VIS-IR and UV-VIS multimode fibers Optional

Applications:

Diode lasers;

Laser Medical;

Laser illumination;

Spectrum measuement;

Dimension:

Ordering P/N:

1,3V-HPSMA905-A-B-C-D-E-F
2,3V-HPSMA905-A-HPSMA905-B-C-D-E-F

A)Fiber length(m):123x-User defined

B)Fiber specification:

SI 40/125-22/220
SI 100/140-22-250
SI 105/125-22/250
SI 200/220-22/500
SI 300/330-22/500
SI 400/440-22/730
SI 800/840-22/1100
X-See optical specifications

C) Fiber sheath

6：6.0mmStainless steel armor

8: 8.0mmStainless steel sheath

X-User defined

D:)Cap specification

M:Metal dust cap
P:Plastic cap

E)Transmission wavelength:X-User defined

F)Transmission power:X-User defined
