PM Fiber Assembly customized

3V TECHNOLOGY is a leading manufacturer for customized optical passive components.Our featured products are below:

1)Fiber Lens(to polish the fiber endface’s degree as customized)

2)Metallized fiber assembly(Au-palting)

3)Fiber hermetic feedthrough

4)Cutomized fiber array/PM fiber array

5)PM patchcord/PM-MT/PM-MPO

Description

3V TECHNOLOGY is a leading manufacturer for customized optical passive components.Our featured products are below:

1)Fiber Lens(to polish the fiber endface’s degree as customized)

2)Metallized fiber assembly(Au-palting)

3)Fiber hermetic feedthrough

4)Cutomized fiber array/PM fiber array

5)PM patchcord/PM-MT/PM-MPO

PM fiber assembly is used to connect DFB LD, Pump LD,Transceiver etc LD/PD components to fibers.

Except  single core PM pigtail,  a polarizing device is a optical fiber patchcord assembly where two or more polarization maintaining fibers are terminated in a single ferrule.

3V-TECH are capable to manufacture high precision dual fiber ferrule assemblies,the polarization axis of each fiber can be independently aligned,either parallel or perpendicular to each other,also can be customized according customer requirement.

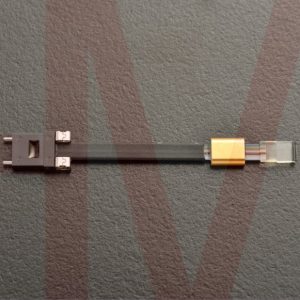

For assemblies with more than two fibers, 3V-TECH offers both V-Groove and MPO, different cores available according customer requirement.

V-groove’s material Quartz/Tempax or customize
Endface Polished-Angle 0-50 degree or customize
Fiber type SM/MM/PM or customize
Fiber Channal 1CH/2CH/4CH/8CH/12CH/48CH or customize
Core Pitch(um) 125,175,250 or customize
Polarization axis’s angle 0 degree/90 degree or customize
PER(dB) ≥18 or customize
Insertion Loss(dB) ≤0.2
Return Loss(dB) ≥50
Remark Customize
