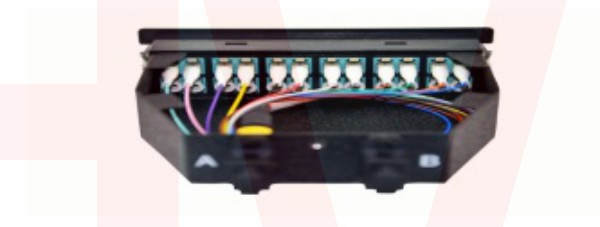

The MPO switching module is mainly used to separate the 12 core MPO connector of the MPO backbone optical cable terminal into a single core or a dual core. The output terminal of the module can be connected directly to the output port of the system equipment, the port of the distribution frame or the user end by using a single core or a double core jumper.

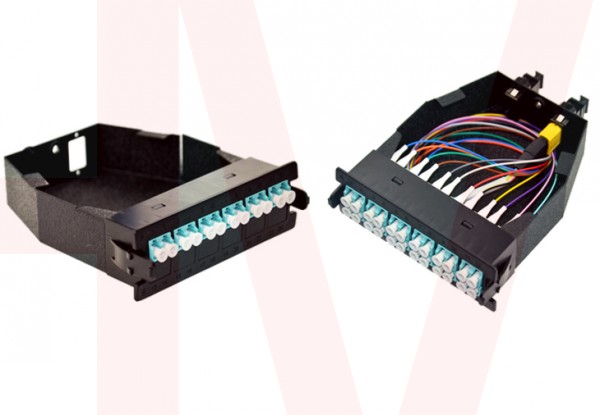

The characteristics of this switching module is a single core or dual core module port in the front, can choose 12 port and 12 port LC SC simplex connector duplex connector, back one or two mounting adapter. The module is a jumper cable, which is directly connected with the front panel and the back adapter of the module.
1, the 12 core MTP connector branch to the LC, MTRJ duplex connector or SC connector.
2, low loss connection, provides system design flexibility.

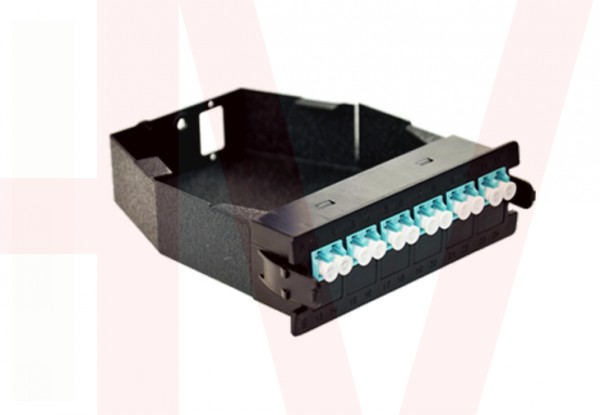

3, front panel assembly LC, MTRJ or SC adapter, rear panel assembly MPO adapter.
4, the use of high-quality engineering plastics and aluminum alloy materials, surface electrostatic spray, beautiful appearance, easy to use
5, MPO panel can be easily upgraded
6, all ports are labeled front, easy to identify
7, convenient installation, flexible configuration, easy to manage

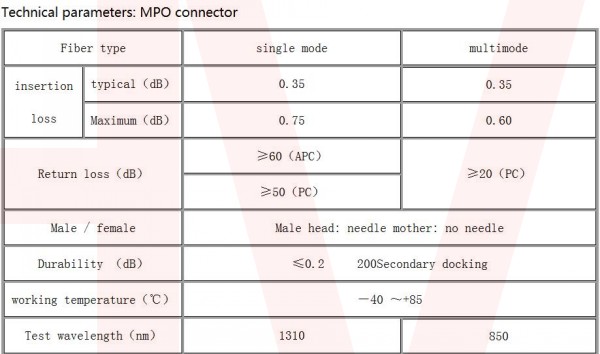

Technical parameters: MPO connector
