We are the most professional and biggest V groove manufacturer in the mainland of China,we mainly make them in BE-33 and Quartz material products.
Here i would like to introduce one products which we had made for our clients,main purpose for holding the fiber
Quartz glass mount with a groove:
1.>out frame 40(±2 mm)*25(±2 mm)*3.5mm±(0 .5mm).
2.>innner frame:30(+2mm)*15(+2mm).
3.>Open a groove in middle,depeth 0.16±0 .025mm,opening angle in 90 degree(60 degree is also available)
4.>transparent surface at it’s back side(except the side with groove).
5.>Matte finish side with V groove,for protecting fibers from sharp edge of the mount.
6.>collinear centerlines of the grooves.

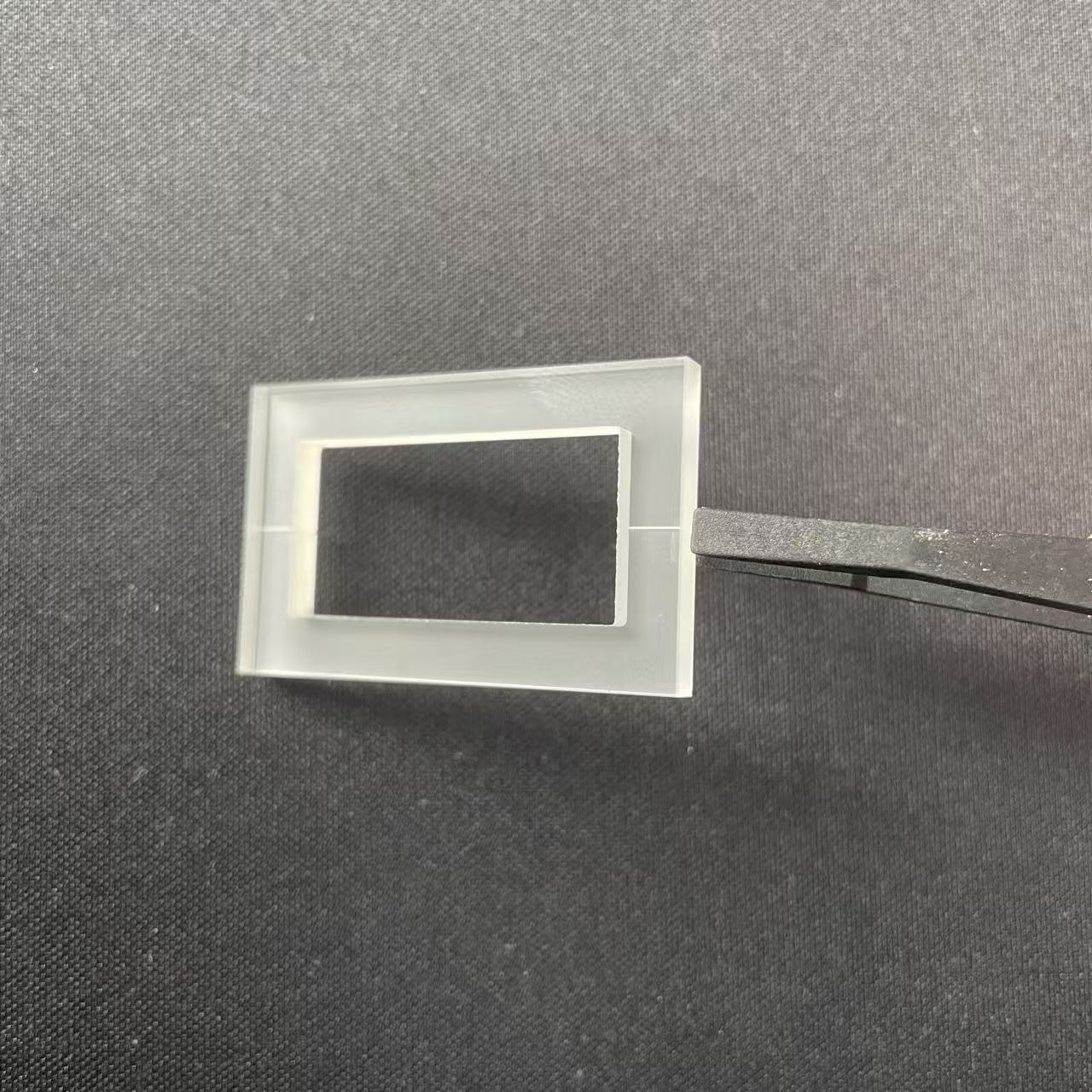

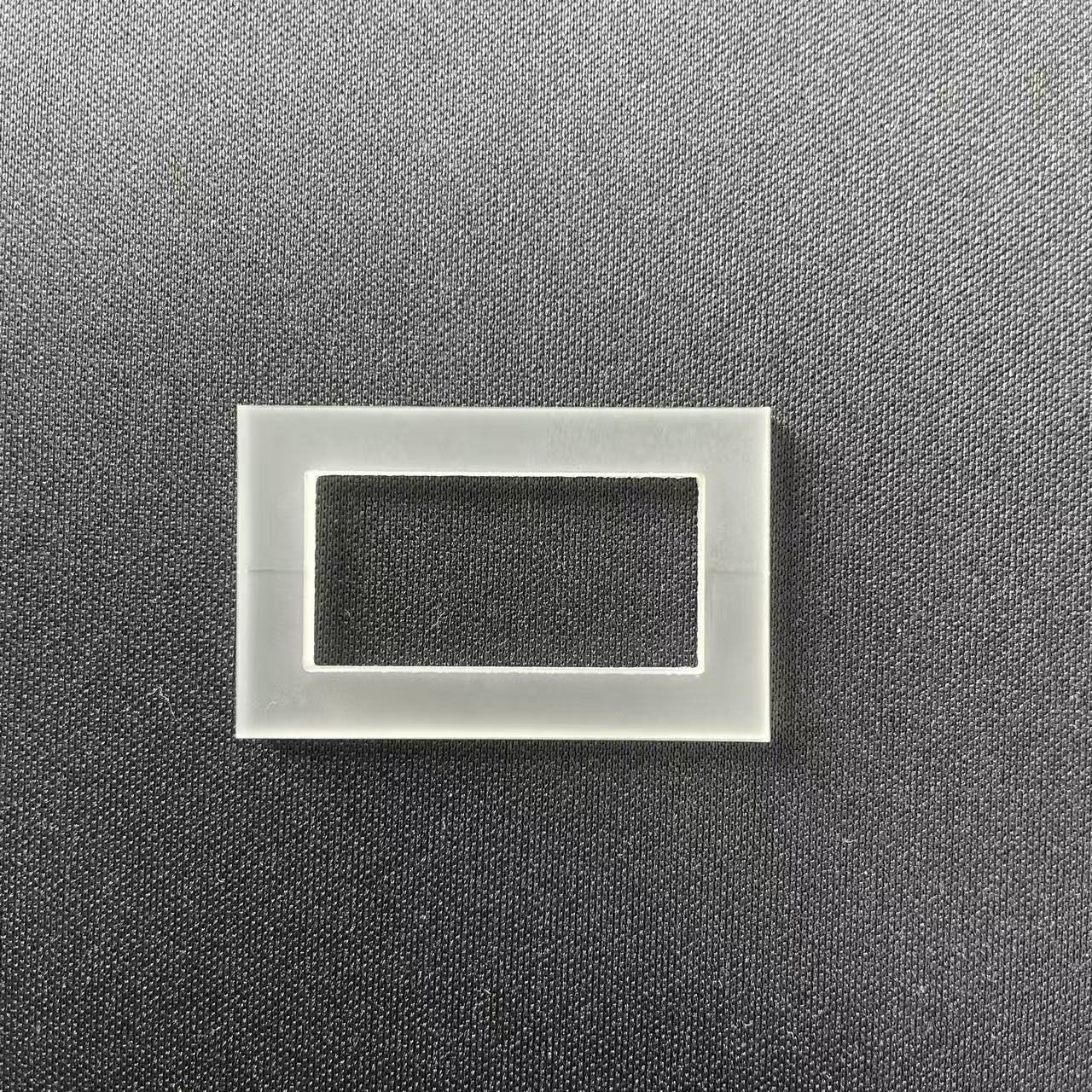

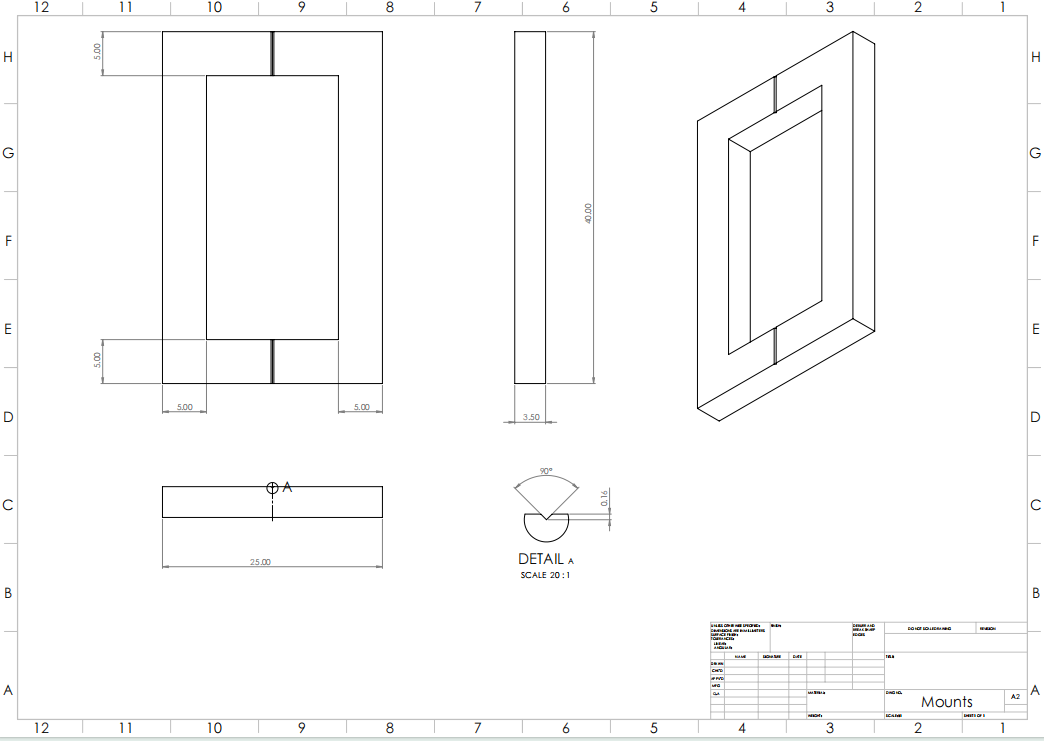

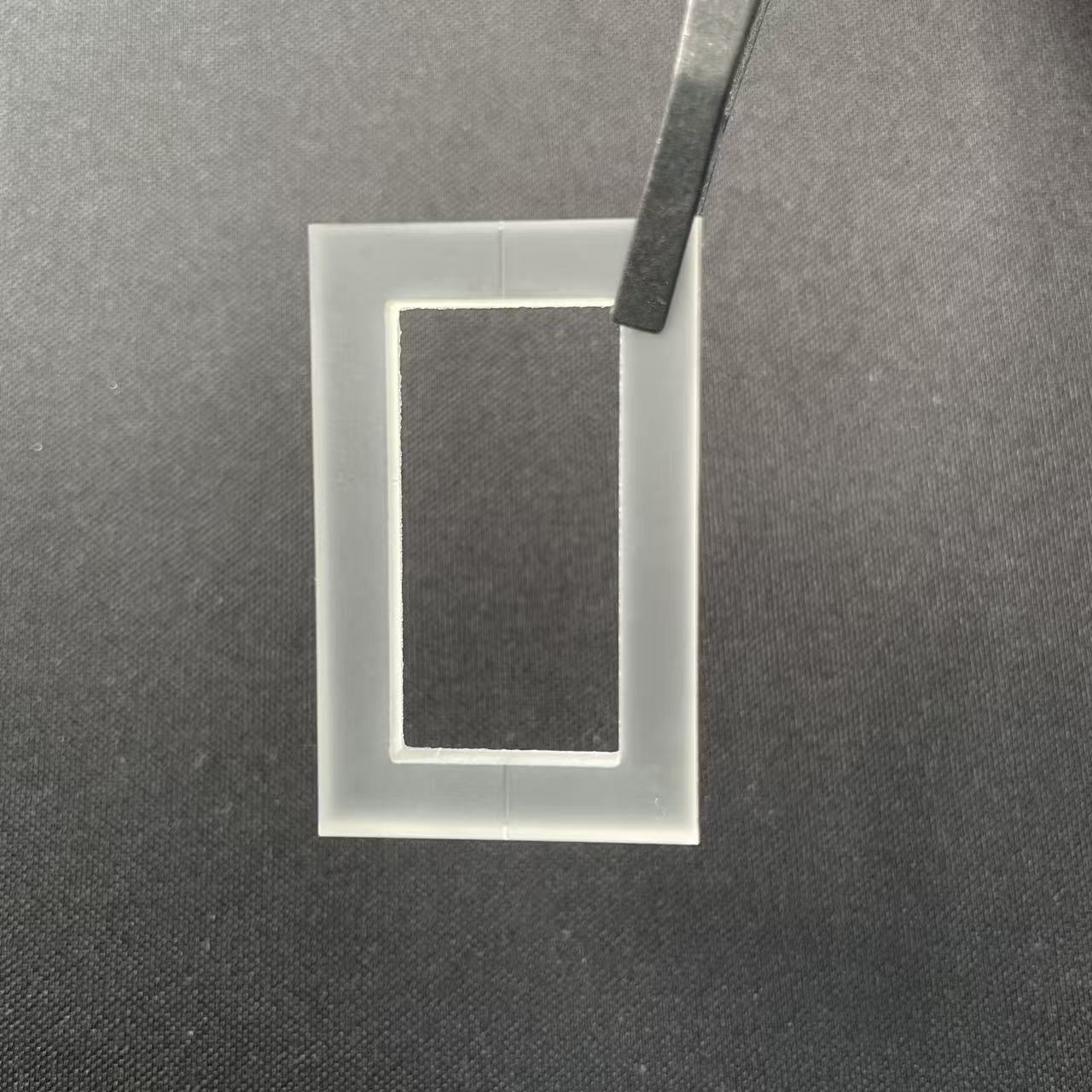

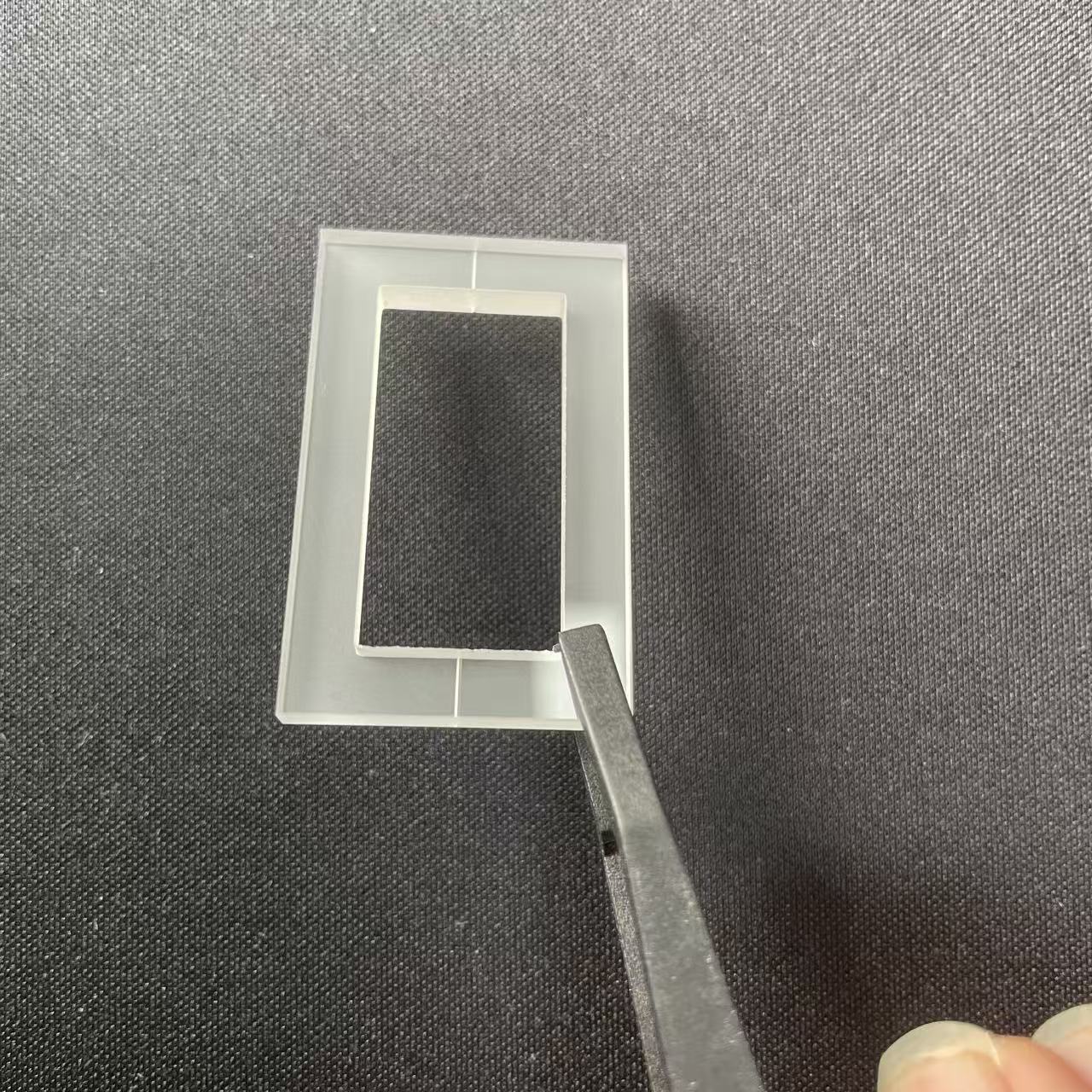

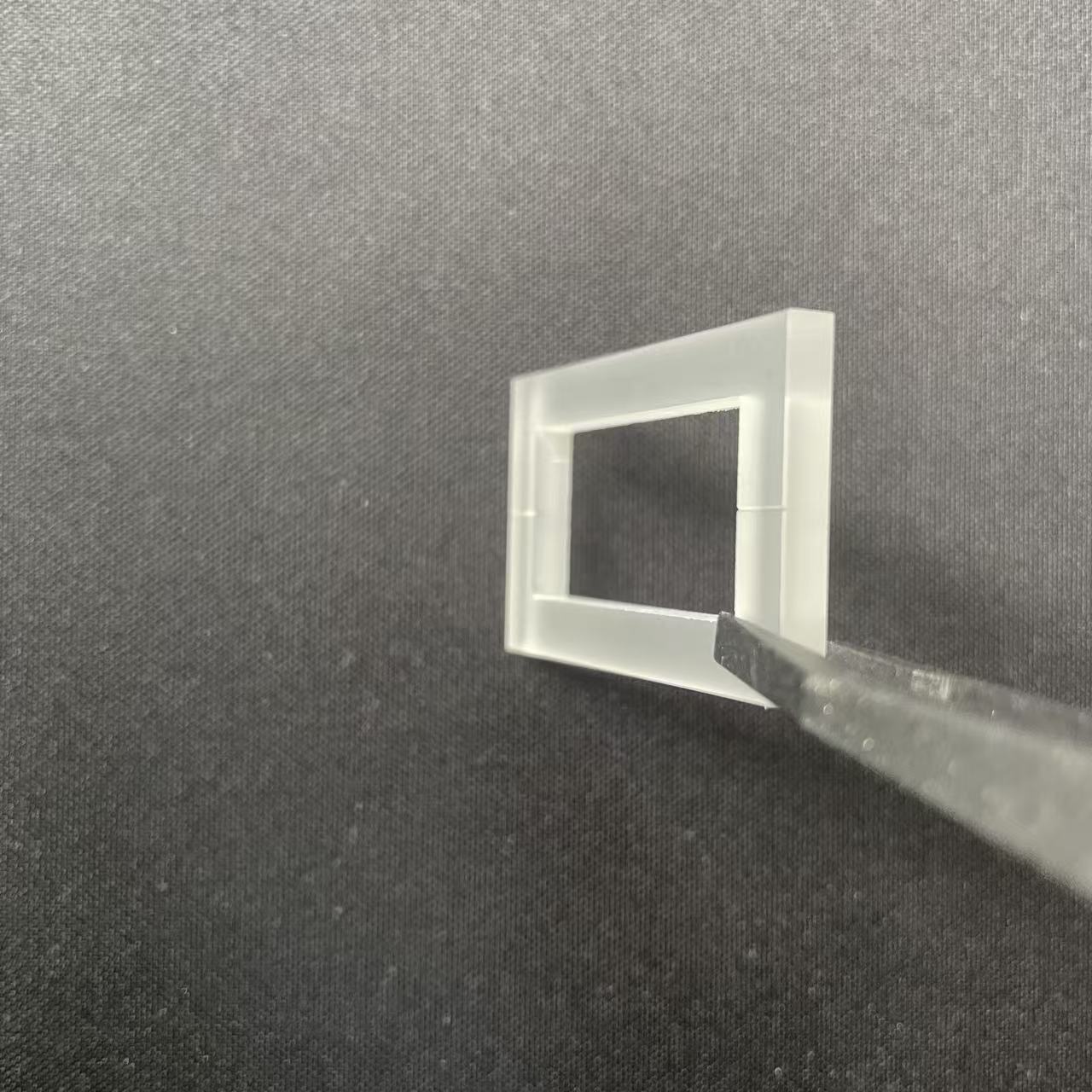

Detailed drawing and pictures of real products:
We are very pleased and welcome your visting at our web site and your inquiry,
Your will experience our top quality service and products.
