We are the prefeesional manufacturer of the fiber array which can assemble with special sealing feedthrough.we can offer you supper quality and give you better design.

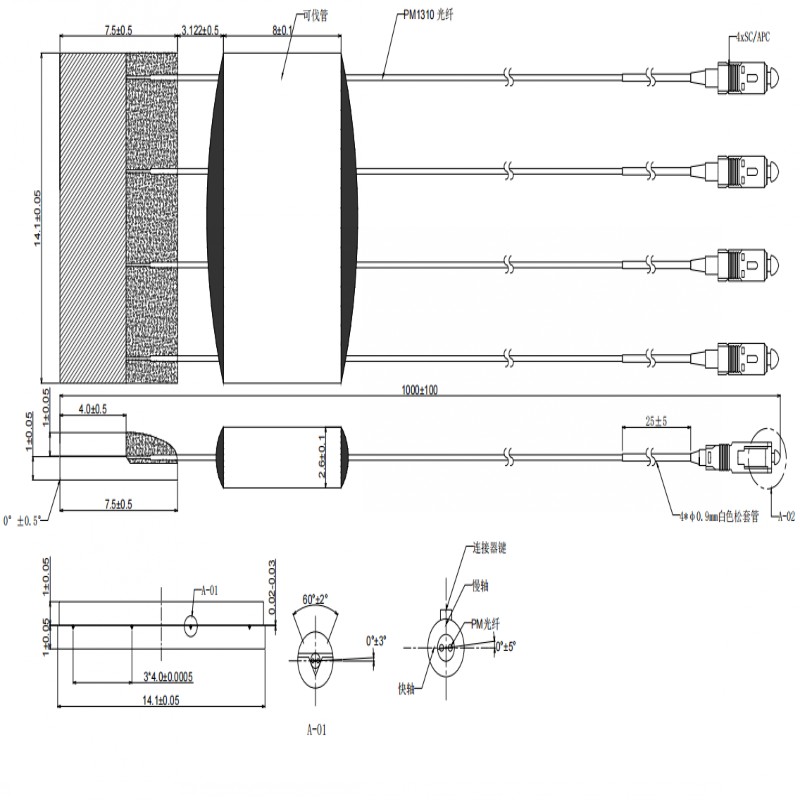

Features:
1:4CH,4mm pitch(can be customized)
2:PM1310 fiber in one meter(can be customized)
3:90 degree stress rods angle alignment(0 degree or 45 degree)
4:Fau facet 0 degree angle polishing(8 degree,or any other degree)
5:SC/APC connector with show axis key alignment(can be customized)
6:3.1mm distance between Hermetic sealing and FA
7:Hermetic sealing in 8mm length and 2.6mm thick(size and shape and be customized)
8:Hermeticity:＜1×10ˉ9 pa.m³/sec
9:Durability: Telcordia Compliant

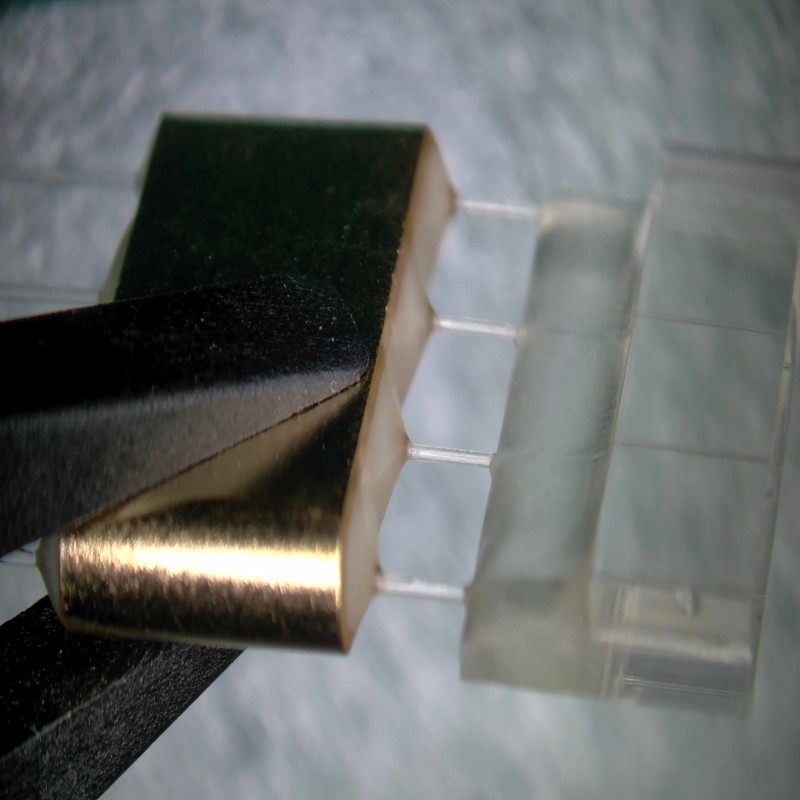

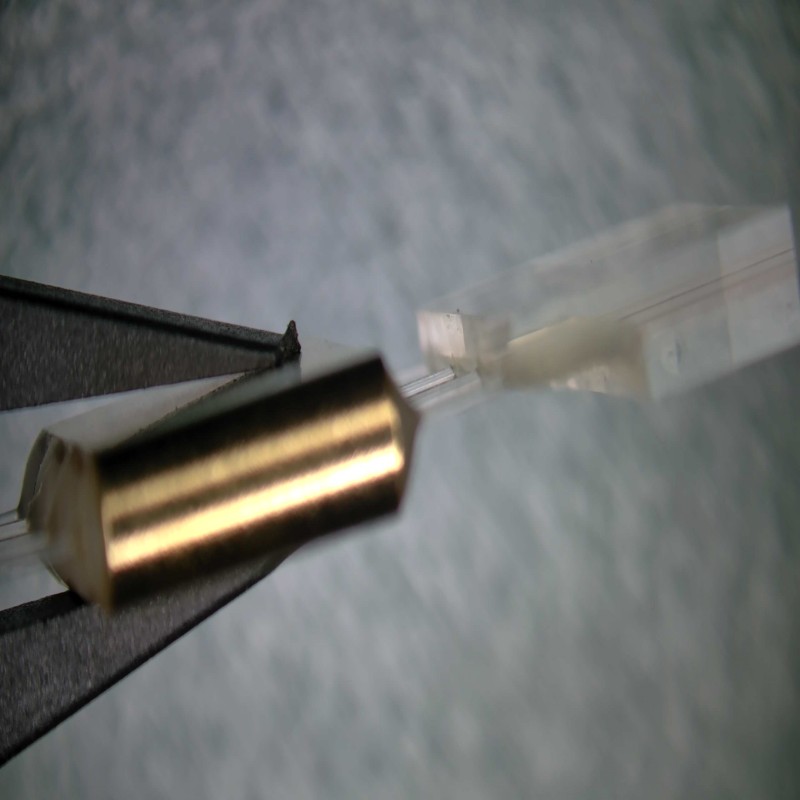

Completed products picture:
Fiber array with speacial sealing (feedthrough),can be used in speacial application enviorments such as Liquids (water, oil, chemical reagents), high pressure/vacuum, corrosive gases, dust, long-term underground/underwater, high vibration, medical sterilization or high cleanliness requirements.
Welcome your visiting and inquiry.
