we are the professional manufacturer of the fiber array ,especially the PM fiber array and customizd fiber array.

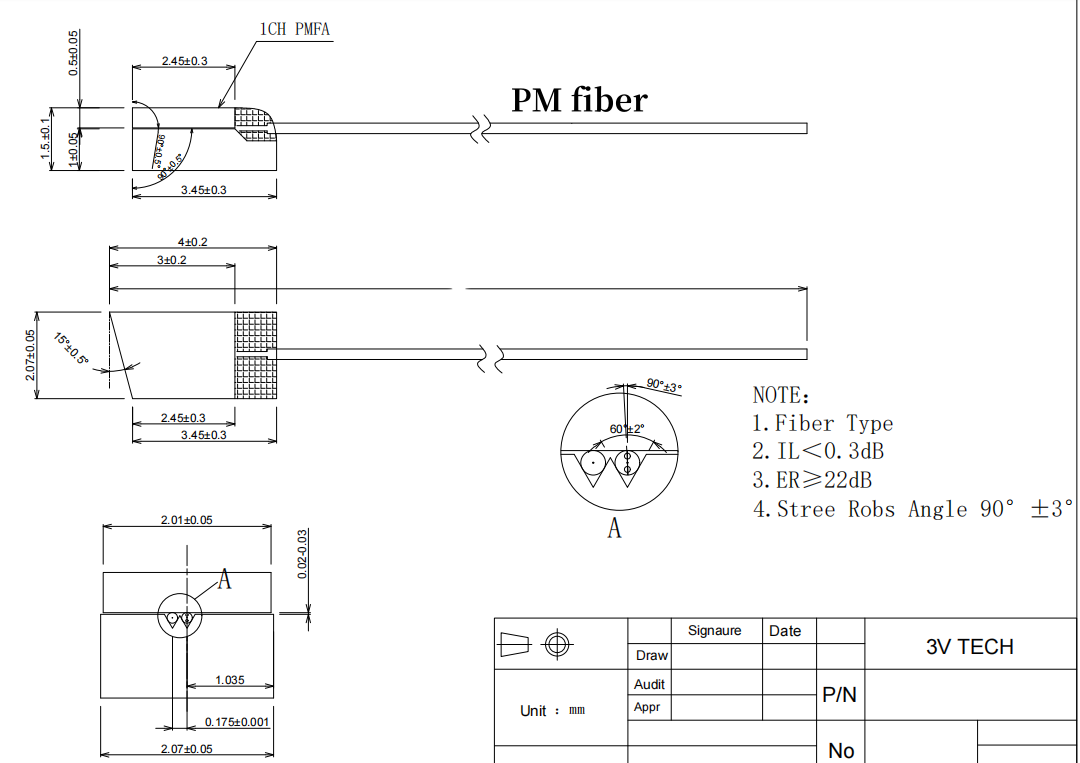

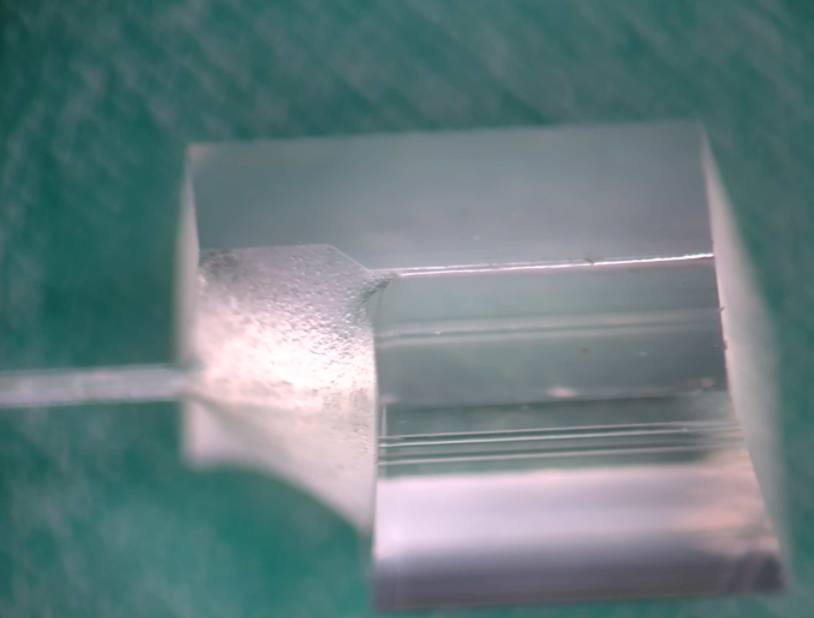

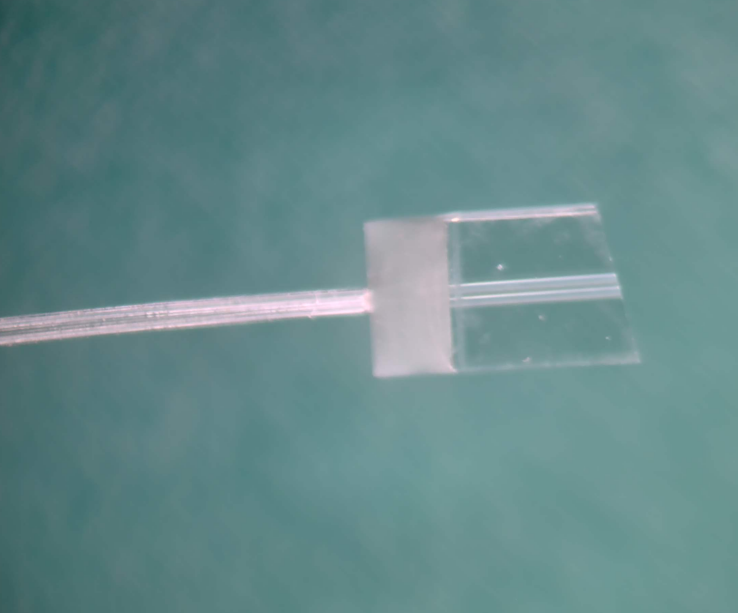

Here is our completed PM fiber array sample with all details:
1: number of channels: 1 (can be customized)
2:Pitch value:175um(can be customized)
3:fiber type:PM15Y-80-U16,in length 1.5 meter long
4:15 degree angle polished at X- axis(horizontal direction)

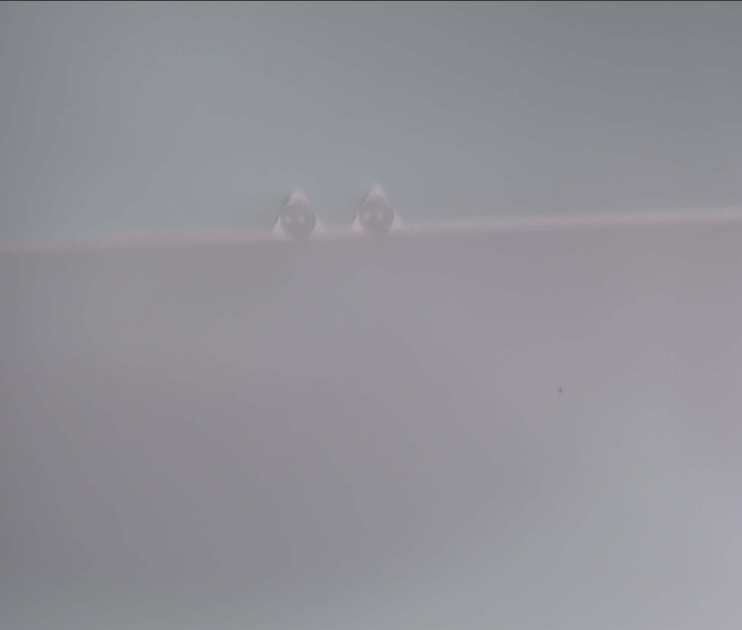

5:90 Degree stress robs(slow axis)
6:no connectors at the other side(can be with connectors as customized)
7:Lid thickness 0.5mm(can be customized)
8:FAU package size can be customized
